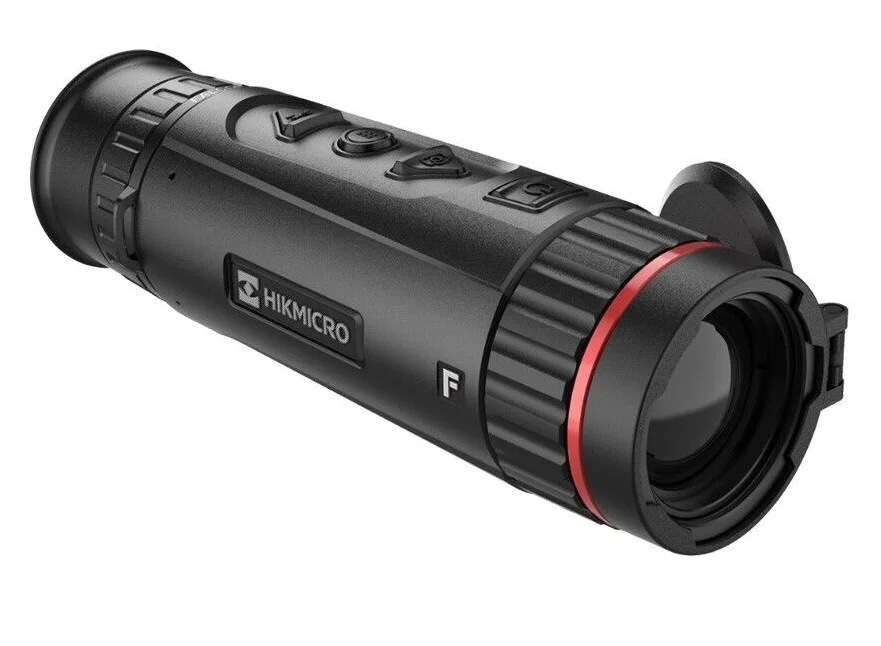

HIKMICRO Falcon FQ35 Pro Thermal Monocular
HIKMICRO Falcon FQ35 Pro Thermal Monocular
HIKMICRO Falcon FQ35 Pro 35mm 640×512 12µm 20mk Hand Held Thermal Imager Monocular
The Falcon Pro 25mm combines the industry leading performance of the HIKMICRO’s latest thermal sensors with a 25mm lens delivering an ultra-wide field of view. This gives a very natural viewing experience and makes the Falcon Pro 25mm perfect for ecology projects and wildlife surveys.
The highly sensitive Falcon Pro 25mm is fitted with a high resolution 640x512px 12um SUB 20 NETD sensor. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information from the surroundings like branches and leaves – building you a reliable picture of your subject and its surroundings.
Welcome to the Falcon series of advanced thermal monoculars – the HIKMICRO Falcon FQ35 Pro 35mm boasts an industry-leading SUB 20 NETD sensor paired to a high-quality F1.0 lens the Falcon delivers the highest performance thermal sensor available on the commercial market. This translates into an exceptionally high-quality image even in the harshest of weather conditions.
The highly thermally sensitive Falcon FQ35 Pro 640x512px 12um SUB 20 NETD sensor ensures perfect detail recognition. Capable of detecting the smallest details like animal hair, subtle physical characteristics, and information from the surroundings like branches and leaves – building you a reliable picture of your target and its surroundings.
The FQ35 model has the widest field of view in the Falcon series (12.54° × 10.0°), combining this with the industry-leading sensor, making it the ultimate tool for deer stalking.
The Falcon replaces the popular Owl series and builds on the easy-to-use, ambidextrous chassis with a highly robust magnesium housing and four buttons that control all functions with ease, even in total darkness. Powered by a removable 18650 battery and with a run time of up to 6 hours the Falcon is ready for the longest hunting trips.
The eyecup would feel at home on a high-quality pair of binoculars, comfortably holding the display in the correct position, giving you a comfortable view of the large HD OLED screen.
The Falcon is the first HIKMICRO product to offer Image Pro mode. When activated image pro boosts the detail in the image both for animals and background. In addition to Image Pro the Falcon also boasts all of the normal software features found in HIK products including a choice of 4 colour pallets and access to the HIKMICRO Sight app which allows you to stream, control and record from your thermal monocular. The built in 64gb memory also allows you to save images and videos directly onto the monocular.
The higher sensitivity in combination with high definition sensor and larger aperture optics provides the best quality, most detailed&high-contrast, informative image in all weather conditions.
Extremely high thermal sensitivity, NETD<20mK
High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves sensitivity. The smallest details of objects and backgrounds can be identified clearly.
High-definition thermal sensor, up to 640×512 @12μm2.
Equipped with a 12μm high-end thermal sensor and up to 640×512 pixel resolution offer an excellent temperature resolution to ensure the thermal image is significantly sharp and richly contrasted.
Super large aperture f/0.9 lens, 19% improvement
With a high-performance aspheric germanium lens, the super large aperture f/0.9 offers better temperature radiation capturing capability. Compared with the f/1.0 aperture, the capturing of temperature radiation level is increased by 19%. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.
Image Pro, enhanced self-developed image processing algorithm
Image Pro, HIKMICRO’s self-developed image processing algorithm, ensures the maximum digital image optimization depending on the purposes and conditions of observation and provides high-quality rendering of both target objects and background.
Ergonomic cylindrical shape design for better operation experience
The compact and premium cylindrical shape design offers the perfect operation experience. It allows for one-handed operation and is also optimized for both left-handed and right-handed users. Besides, the device adopts soft and skin-friendly material for a better hand feel.
Perfect component design for intuitive operation and ease-to-use
The component design has been greatly improved according to user feedback, which is more in line with the needs of users‘ real use scenarios. The buttons arrangement is very user-friendly and with the different shapes, each function can be identified and controlled intuitively and quickly–even when wearing gloves or under complete darkness.
Robust magnesium housing and lens coating material for long-time use
The rugged magnesium housing material prevents sweat, rain, mist and dew from corroding. The objective lens adopts SDLC coating technology, which can effectively prevent scratches. With IP67 waterproof-rated, the device can be immersed in up to 1 meter of water for up to 30 minutes.It’s perfect for constant and often hard use.
On one battery pack the device can run up to 6 hours. With the convenient replaceable feature, another battery unit can be used as the spare one which provides enough power for non-stop operation. Besides, any ordinary power bank connected via a Type-C interface can be used as an external power supply.
Long detection range up to 2600m and very large field of view up to 22m@100m
Suitable for different observation scenes, giving a considerable advantage when stalking at night over long distances from a raised hide in a field, or providing a perfect overview in a wooded area over short distances.
Powerful digital zoom, up to 8x
With 8x digital zoom, objects can be reliably identified and recognized at any time, and no details remain hidden, even at great distances.
- Sensor: 640x512px @ 12µm
- Objective Lens (Focal Length): 35 mm
- Detection Distance: 1800 m
- Type: VOx Uncooled Focal Plane Arrays
- Resolution, pixels: 640 x 512 px
- Pixel pitch, µm: 12µm
- Frame rate, Hz: 50 Hz
- NETD: <20mK
- Objective lens: F1.0
- Magnification (Optical): 1.8x
- Magnification (Digital): 1x, 2x, 4x, 8x
- Field of view: 12.54° × 10.0° (H × V)
- Type: 10 mm, OLED
- Resolution, Pixels: 1024 x 768
- Colour Palettes: Black Hot, White Hot, Red, Hot, Fusion
- Build in memory, Gb: 64 Gb
- Image Capture: Yes
- Video Record: Yes
- Image Pro Mode: YES
- Hot Tracking: YES
- WiFI hot spot: YES
- HIKMICRO Connect App support: YES
- Degree of Protection, IP code: IP67
- Dust Protection: Protected against dust ingress
- Water Protection: Protected against temporary submersion in water
- Operating Temperature Range: -30 °C to 55 °C
- Dimensions, mm: 187 mm × 58 mm × 65 mm
- Weight, kg: 0.5 kg
- Battery Type: 18650 Removable battery
- Operating time on battery (WiFi & Hot tracking disabled): 5 hours continuous running
- Charging Interface: External charger (Supplied)
- Main Unit: 3 Years
