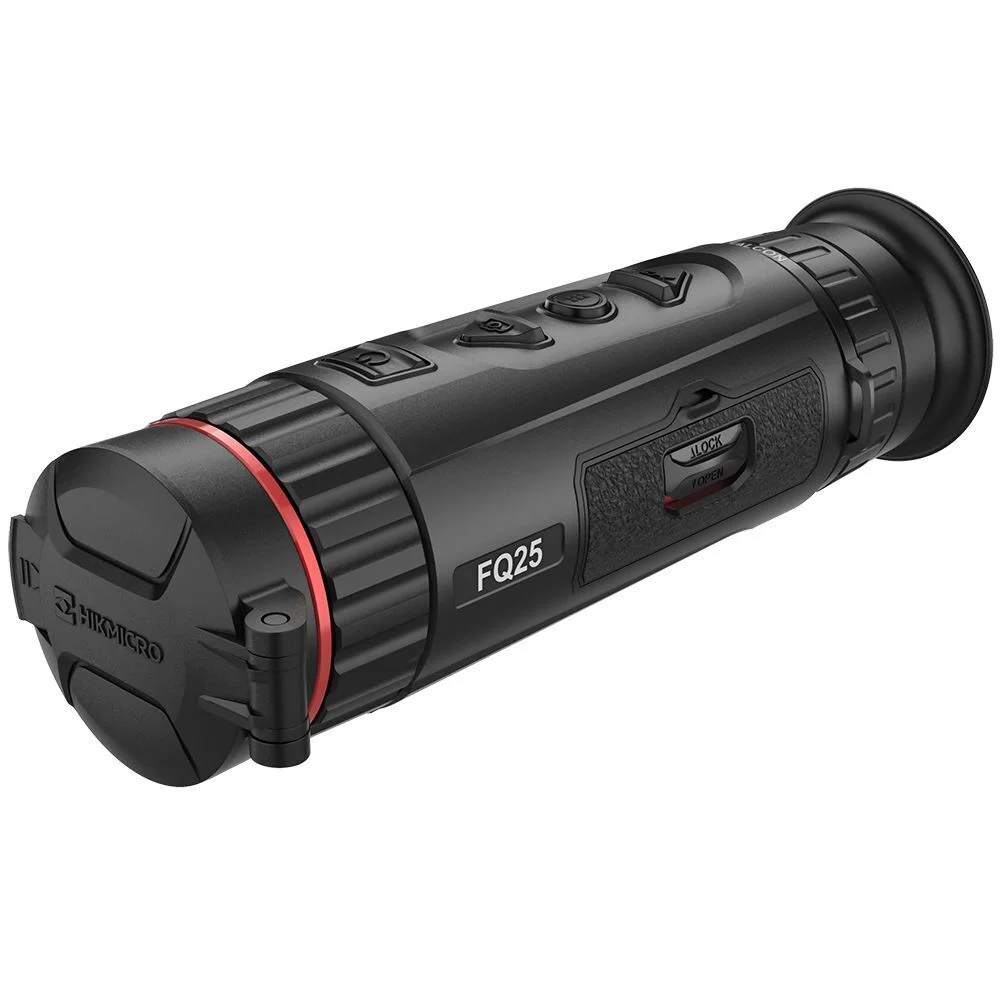

HIKMICRO Falcon FQ25 Pro 25mm 640×512 12µm 20mk Hand Held Thermal Imager Monocular
The Falcon Pro 25mm combines the industry leading performance of the HIKMICRO’s latest thermal sensors with a 25mm lens delivering an ultra-wide field of view. This gives a very natural viewing experience and makes the Falcon Pro 25mm perfect for ecology projects and wildlife surveys.
The highly sensitive Falcon Pro 25mm is fitted with a high resolution 640x512px 12um SUB 20 NETD sensor. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information from the surroundings like branches and leaves – building you a reliable picture of your subject and its surroundings.
The HIKMICRO Falcon Pro 25mm replaces the popular Owl series and builds on the easy-to-use, ambidextrous chassis with a highly robust magnesium housing and four buttons that control all functions with ease, even in total darkness. Powered by a removable 18650 battery and with a run time of up to 6 hours the HIKMICRO Falcon FQ25 Pro is ready for work.
The eyecup of the HIKMICRO Falcon Pro 25mm would feel at home on a high-quality pair of binoculars, comfortably holding the display in the correct position, giving you a comfortable view of the large HD OLED screen.
The HIKMICRO Falcon Pro 25mm is the first HIKMICRO product to offer Image Pro mode. When activated image pro boosts the detail in the image both for animals and the background.
In addition to Image Pro, the HIKMICRO Falcon Pro 25mm also boasts all of the normal software features found in HIK products including a choice of 4 colour pallets and access to the HIKMICRO Sight app which allows you to stream, control and record from your thermal monocular. The built-in 64GB memory of the HIKMICRO Falcon Pro 25mm also allows you to save images and videos directly onto the monocular.
Ultra Clear Image. Impressive Detail Recognition
The higher sensitivity in combination with high definition sensor and larger aperture optics provides the best quality, most detailed&high-contrast, informative image in all weather conditions.
Extremely high thermal sensitivity, NETD<20mK
High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves
sensitivity. The smallest details of objects and backgrounds can be identified clearly.
High definition thermal sensor, up to 640×512 @12μm
Equipped with 12μm high-end thermal sensor and up to 640×512 pixel resolution offer an excellent temperature resolution to ensure the thermal image significantly sharp and richly contrasted.
Super large aperture f/1.0 lens
With a high-performance aspheric germanium lens, the super large aperture f/1.0 offers better temperature radiation capturing capability. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.
Image Pro, enhanced self-developed image processing algorithm
Image Pro, HIKMICRO’s self-developed image processing algorithm, ensures the maximum digital image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.
Ergonomic cylindrical shape design for better operation experience
The compact and premium cylindrical shape design offers the perfect operation experience. It allows for one-handed operation,and is also optimized for both left-handed and right-handed users. Besides, the device adopts soft and skin-friendly material for a better hand feel.
Perfect component design for intuitive operation and ease-to-use
The component design has been greatly improved according to user feedback, which is more in line with the needs of users‘ real use scenarios. The buttons arrangement is very user-friendly and with the different shapes, each function can be identified and controlled intuitively and quickly–even when wearing gloves or under complete darkness.
Robust magnesium housing and lens coating material for long-time use
The rugged magnesium housing material prevents sweat, rain, mist and dew from corroding. The objective lens adopts SDLC coating technology, which can effectively prevent scratches. With IP67 waterproof-rated, the device can be immersed in up to 1 meter of water for up to 30 minutes.It's perfect for constant and often hard use.
Replaceable and Rechargeable High Capacity Battery, Not-stop Observation
On one battery pack the device can run up to 6 hours. With the convenient replaceable feature, another battery unit can be used as the spare one which provides enough power for non-stop operation. Besides, any ordinary power bank connected via a Type-C interface can be used as an external power supply.
Long detection range and very large field of view
Suitable for different observation scenes, giving a considerable advantage when stalking at night over long distances from a raised hide in a field, or providing a perfect overview in wooded area over short distances.
Powerful digital zoom, up to 8x
With 8x digital zoom, objects can be reliably identified and recognized at any time, no details remain hidden, even at great distances.
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Frame Rate: 50Hz
- Pixel Interval: 12μm
- Response Waveband: 8μm to 14μm
- NETD: Less than 20 mK (@25°C),F#=1.0
- Detection Range: 1200m
- Field of View(H × V), Degrees / m @100m: 17.5° × 14.0°/30.8 m × 24.6 m
- Min. Focusing Distance: 2.5m
- Aperture: F1.0
- Digital Zoom: 1×?2×?4×?8×
- Focal Length: 25mm
- Resolution: 640×512
- Optical Magnification: 1.42
- Palettes: Black hot, white hot, red hot, fusion
- FFC (Flat Field Correction) Mode: Auto,Manual,External Correction
- Monitor: 0.39 inch, OLED, 1024 ×768
- Protection Level: IP67
- Weight: 450g without battery
- Dimension: 190.3 mm ×58.3mm ×66.9 mm?7.64″×2.29″×2.99″?
- Work Temperature / Humidity: From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
- Record Video: Yes
- Capture Snapshot: Yes
- Hotspot: Yes
- Standby Mode: Yes
- Storage: Built-in memory module (64 GB)
- Hot Track: Yes
- Power: 5V?1.95W
- Battery Type: Replaceable and Rechargeable Li-ion Battery
- Battery Operating Time: 5 hours continuous running with CVBS and hotspot function off (@25°C)
- Full colour 1024×768 HD OLED display
- Hot tracking mode
- Photo / video recorder with 64gb built in memory
- Four colour palettes
- HIKMICRO Sight APP sharing wonderful moments
